12 Years Manufacturer 30W Floodlights LED SMD 2835 With 60 Beam
Angle
Quick details of 30W Floodlights:
► Product type: Flood Lights.
► Model: SU-WS30.
► LED qty.: 40 PCS.
► Lumen index: 3900 lumens.
► Light source type: super bright LED chips SMD 2835 osram.
► Input work voltage: AC85-265V, 50/60Hz.
► Optional color temperature: normal 2700K, 3000K, 4500K, 6500K,
7000K+ and customised color.
► Available wattages: 30w, 50w, 100w, 150w and 200w.
► Surge protection: 4KV.
► Shock-proof class: IK07.
► Water-proof class: IP66.
► Material: die casting aluminum and optical PC lens with 60 Deg.
and 120 Deg. optional.
► Optional narrow beam angle 60 degree and wide beam angle 120
degree.
► Various smart type: 0-10V dimming, Dali dimmming, pir motion
sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and
remote control.
Descriptions of 30W Floodlights:
► 40 LEDs 3900 Lumens
The built-in upgraded 40pcs super bright LED smd chips can make
3900lm high output brightness, which is much more brighter than
other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of
light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with
corrosion-proof, shock-proof, dust-proof and weather-proof, faster
heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency,
PF>0.9, famous brand drivers available.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet
applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 degree, no yellow, and
high light transmission up to >95%.
Product Parameters of 30W Floodlights:
| Product Name | 30W Floodlights |
| Model | SU-WS30 | SU-WS50 | SU-WS100 |
| Input Voltage | AC85-265V, 50/60Hz |
| Power Consumption | 30W | 50W | 100W |
| Light Source | SMD 2835 Osram |
| Light Efficiency | 130lm/W |
| Color Temperature | 2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size (mm) | L223*W181*H35 | L253*W211*H35 | L284*W241*H40 |
| Driver | Constant Current Isolated Driver |
| Body Material | ADC12 Aluminum |
| Cover Material | PC cover |
| CRI | >80 |
| PF | >0.9 |
| Housing Color | Black, White |
| Surge Protection | 4KV |
| Beam Angle | 60° |
| Class Protection | IK07, IP66 |
| Working Temperature: | -30 ~ 50 Deg. |
| Life Span | 50,000H |
| Warranty | 3 Years |
| Application | garden, yard, wall, stair, shop, door |

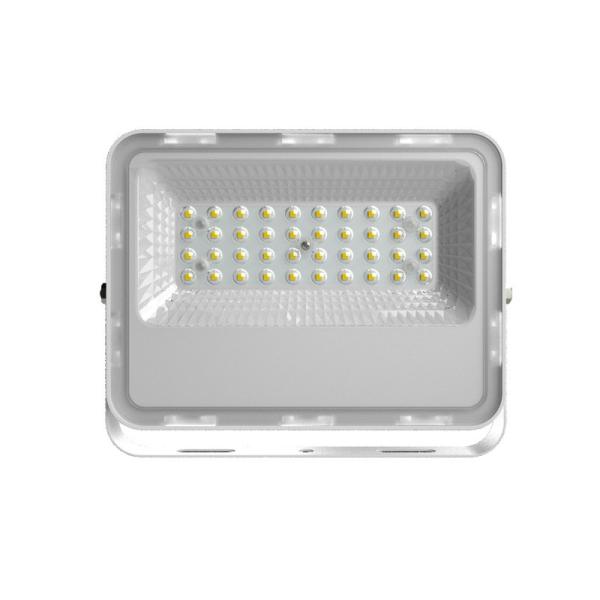

Product Show of 30W Floodlights:
Product figure of 30W Floodlights:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long
use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat
running.
6. High-quality and famous brand driver: Meanwell, sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of 30W Floodlights:
Optical Lens 60 and 120 degree available of 30W Floodlights:
Installations of 30W Floodlights:
Frequent Questions of 30W Floodlights:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, all of our products can be customised. Please kindly tell
us your idea!
3. Can you do Black body for this model?
Re: Yes, we can. This model has White and Black body for your
options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can this 30w floodlights be dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming
etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. Colorful box and brown paper are possible.
7. Does this 30w floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated
driver, PF>0.9 and warranty 3 years. Other brand driver is
available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the
finished products must have been tested and aged. Finally packed.
If unfornately any fault happend, we will replace.
